UNIQUE™
One-implant-to-go for most indications, from loose to harder bone, with a straightforward surgical protocol.
UNIQUE™ Implant’s tapered design gradually compresses the underprepared osteotomy in soft bone, while providing a snug fit in regular osteotomies in harder bone. This user-friendly implant, with its straightforward drilling and surgical protocol, has consistently delivered successful clinical results.
Design facts
Tapered root-like body
Ensures maximum bone-implant contact in a step-drilled osteotomy.
Dual contour
Coronal part and body are straight; the apical part is conical.
Slightly back-tapered neck
Eliminates the need for wider drilling and preserves cortical bone for long-term success.
Apical cutting edge
Facilitates smooth insertion in narrower osteotomies.
Combined thread
Sharper threads transition to ACME threads, gradually expanding bone for stronger primary stability.
Specifications
| Diameter (mm) | Platform | Lengths available (mm) |
|---|---|---|
| 3.3 | NP | 8 · 10 · 11.5 · 13 · 16 |
| 3.75 | NP | 8 · 10 · 11.5 · 13 · 16 |
| 4.2 | RP | 8 · 10 · 11.5 · 13 · 16 |
| 4.7 | RP | 8 · 10 · 11.5 · 13 · 16 |
| 5.3 | RP | 8 · 10 · 11.5 · 13 · 16 |

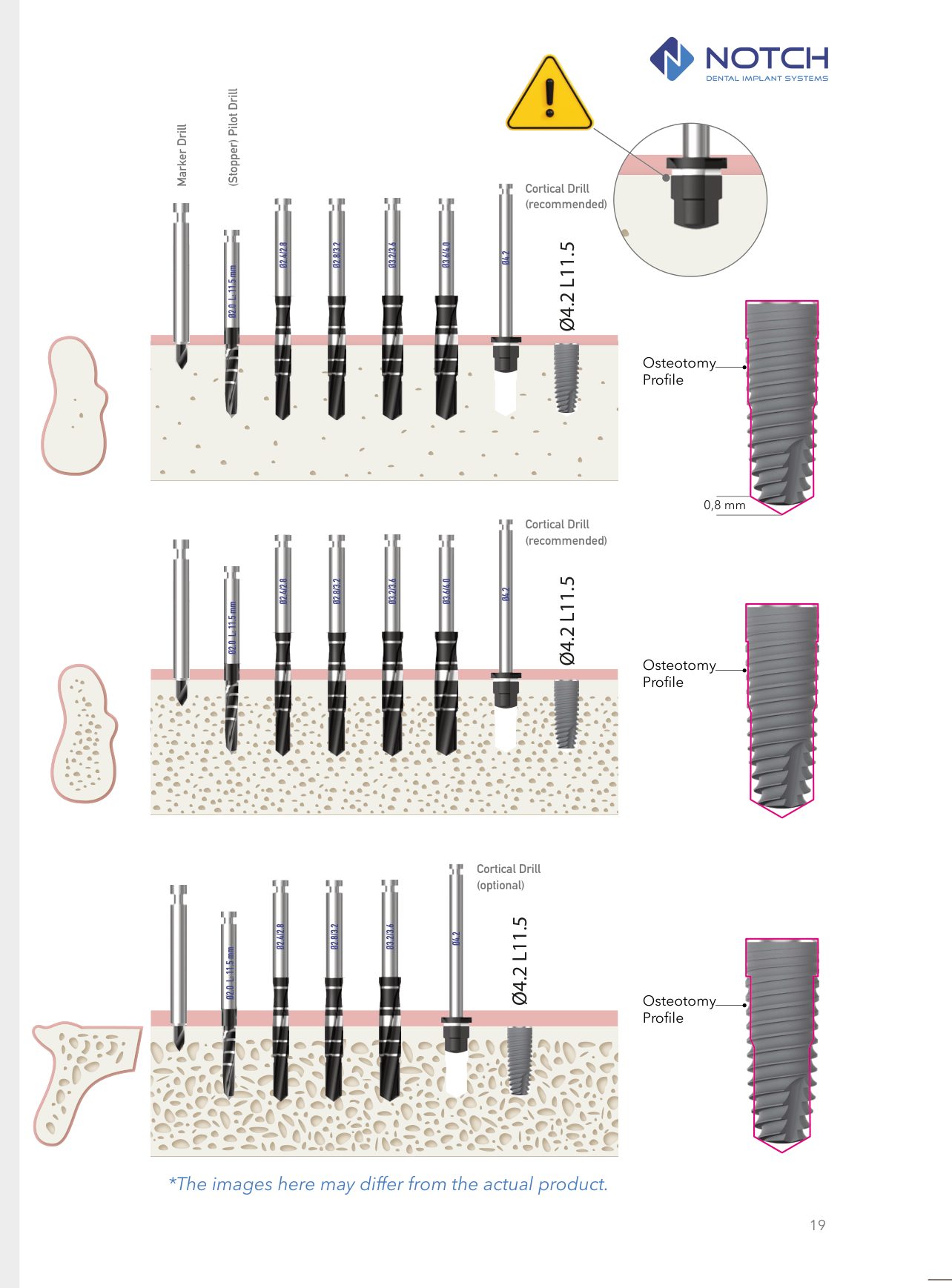

Surgical protocol overview
Reference drilling sequence by bone density classification (Ø4.2 implant shown as example).
Drill to the 3.6–4.0 mm step drill and finish with the cortical drill. Place the implant 0.5 mm subcrestally.
Drill to the 3.6–4.0 mm step drill and finish with the cortical drill. Place the implant 0.5 mm subcrestally.
A 1-step narrower drilling protocol is recommended for better primary stability; the cortical drill is optional to break through cortical bone.
Full step-by-step drilling sequences and torque guidance are provided in the official NOTCH® Instructions for Use accompanying every surgical kit.
